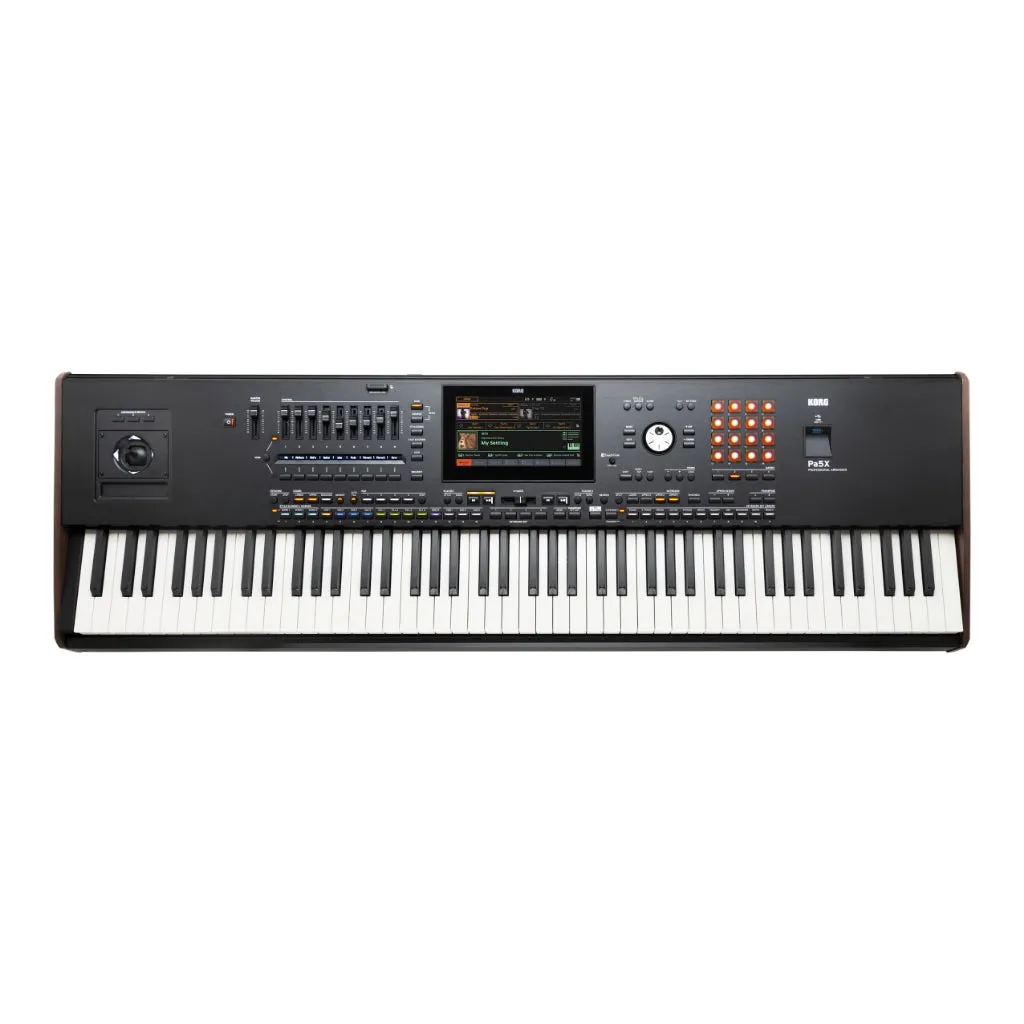

Pa5X is the new flagship in the KORG Professional Arranger lineup, redefining an arranger keyboard. Completely redesigned with a state-of-the-art sound engine and a streamlined color-driven user interface, Pa5X produces a stunningly rich and unique sonic experience that inspires you to create and perform!
Pa5X comes packed with thousands of inspiring Sounds and hundreds of fresh Styles, all instantly accessible through an inviting workflow. A completely new front panel featuring an assignable Pad Matrix and Mixer section, multicolored LED buttons, and a huge tilt-able touchscreen puts you in control of your music making experience at all times. Pa5X excels both as a live performance instrument and as a powerful creative tool in the studio, allowing you to find your ideal sound no matter where your music takes you.
Pa5X comes packed with thousands of inspiring Sounds and hundreds of fresh Styles, all instantly accessible through an inviting workflow. A completely new front panel featuring an assignable Pad Matrix and Mixer section, multicolored LED buttons, and a huge tilt-able touchscreen puts you in control of your music making experience at all times. Pa5X excels both as a live performance instrument and as a powerful creative tool in the studio, allowing you to find your ideal sound no matter where your music takes you.
Features
- 88-key (A0–C8), fully weighted hammer-action keybed with aftertouch
- Powerful EDS-XP (Enhanced Definition Synthesis-Expanded) sound engine
- Streamlined, modern user interface
- 8-inch wide capacitive color TouchView TFT display, 800 x 600 pixel resolution
- Color-coded LED real-time controllers
- 9 assignable sliders, 9 assignable buttons, strip display
- Instant recall buttons: 4 Preset 1 User settings
- Matrix Section: 16 Matrix Pads, 4 Preset buttons
- General Controls: Master Volume, Octave Transpose, Master Transpose, Dial, Up/ , Down/-, Joystick (Pitch Modulation), Ribbon, 3 assignable Switches, Search, Shift, Keyboard Sounds On/Off, Split, Ensemble, Rec/Edit, Menu, Exit
- Scale Controls: On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch
- Over 400 factory Pads, 4 Assignable Pads Stop buttons; Pad Record function
- Advanced chord recognition; full chord-sequence library
- Over 200 factory Chord Sequences; Chord Sequence Recorder/Player; Chord Sequences may be saved to Style and SongBook entries
- Smooth transitions between Sounds, Styles, and Songs
- Patented XDS Crossfade Dual Player with X-Fader balance control
- XDS crossfades anything: Styles to MIDI files, MIDI files to MP3-files, and Styles to Styles
- Each player displays lyrics and score
- Create your own Styles and Songs
- SongBook, your on-the-go music library
- Complete sound library
- Over 500 Factory Keyboard Sets, freely programmable
- Onboard mixer with insert, master, final, and mastering effects
- Supports standard file formats
- User PCM Sample memory: 4GB of data ( 8GB linear compressed)
- Loads Korg, WAV, AIFF, and SoundFont formats; Saves Korg, WAV, and AIFF formats
- Full Edit, Time Slice, and Sampling features
- Double MP3 Player/Recorder (records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Matrix, Microphone, Guitar, and Effects); Transpose ( 6/-5 semitones), Tempo Change (±30%); Vocal Remover
- Sleek, sturdy aluminum case with wooden side panels
- Internal system clock
- Upgradable operating system
- Included AC Power Cable, Music Stand, and Quick Guide manual
Specs
- Number of Keys: 88
- Type of Keys: Weighted Hammer-action
- Other Controllers: Pitch/Modulation Joystick, Ribbon Controller, 9 x Programmable Buttons/Sliders, 16 x Pads, Transpose
- Polyphony: 160 Notes
- Presets: Over 2200 Factory Sounds
- Effects Types: Guitar FX, Mic FX, Keyboard FX, Style/Song FX, EQ, Mastering
- Memory: 4GB Internal PCM Sample Memory
- Storage: Micro SD card slot, USB Flash Drive
- Formats: KORG, WAV, AIFF, SoundFont
- Sequencer: 16 track
- Audio Recording: MP3
- Audio Playback: XDS Crossfade Dual Player: MP3 Lyrics, MIDI, KAR, MP3 G
- Audio Inputs: 1 x XLR-1/4 combo (mic), 1 x 1/4 (guitar), 2 x 1/4 (line 1), 1 x 1/8 (line 2)
- Audio Outputs: 6 x 1/4
- USB: 3 x Type A (host/storage), 1 x Type B (device)
- MIDI I/O: In/Out/Thru/USB
- Headphones: 1 x 1/4
- Pedal Inputs: 3 x 1/4 (damper, assign 1/2)
- Other I/O: 1 x HDMI
- Features: Tiltable 8 TouchView Display, Multimode FIlters with Resonance, EDS-XP Sound Engine, Aftertouch
- Power Supply: Standard IEC power cable
- Height: 5.74
- Width: 49.68
- Depth: 15.60
- Weight: 44.31 lbs.
